1975 TURBO COMMANDER 690A

Exterior

Click for more pictures
640 x 480
Instrument Panel | Console | Entry A | Entry B | Interior A | Interior B |

800 x 600

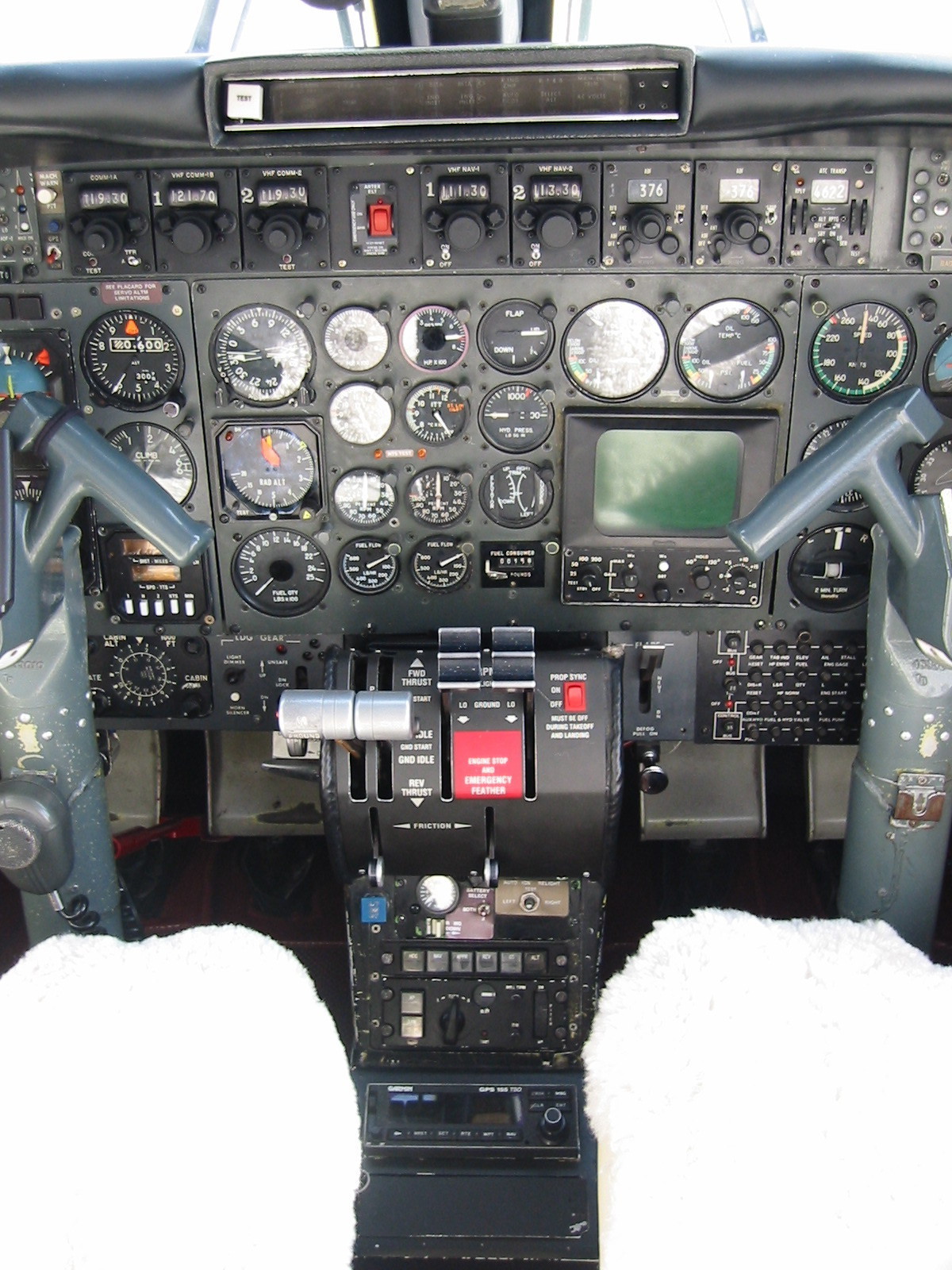

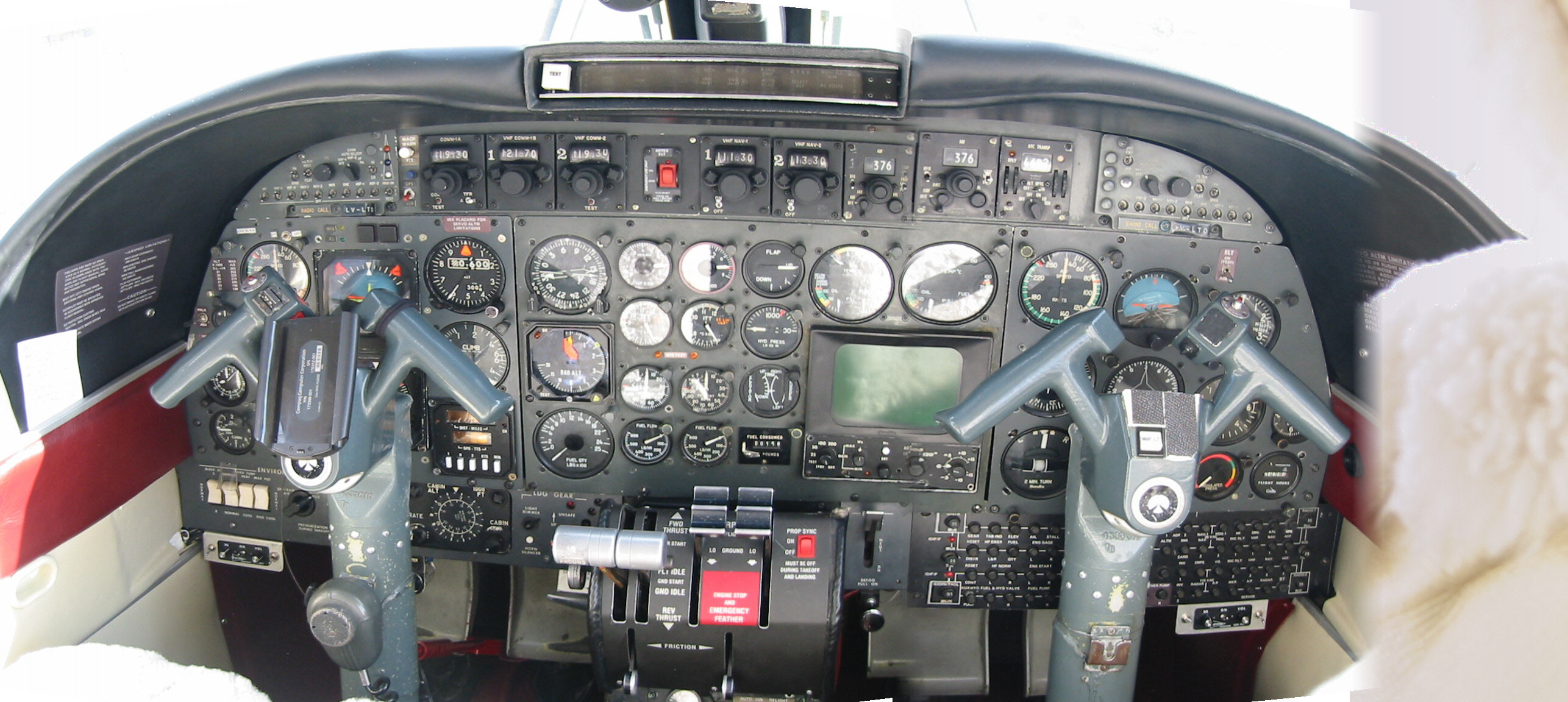

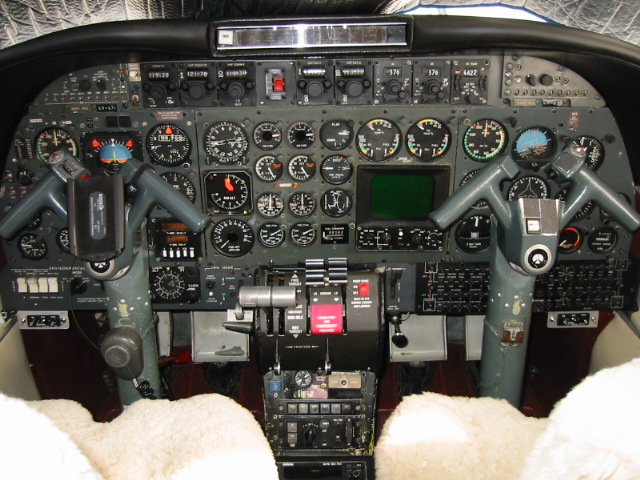

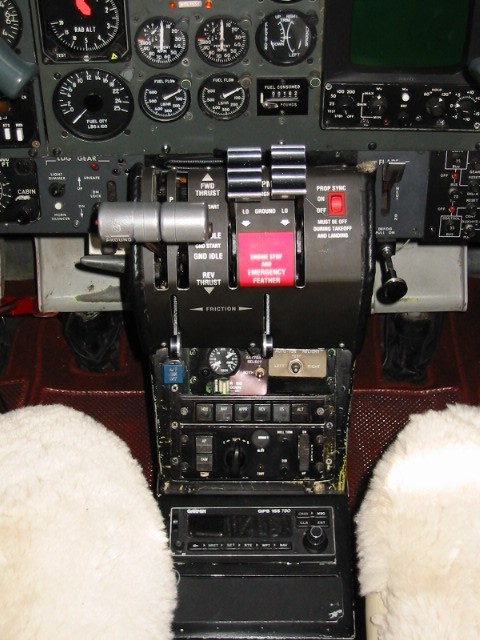

| Exterior 1 | Exterior 2 | Instrument Panel 1Instrument Panel 2

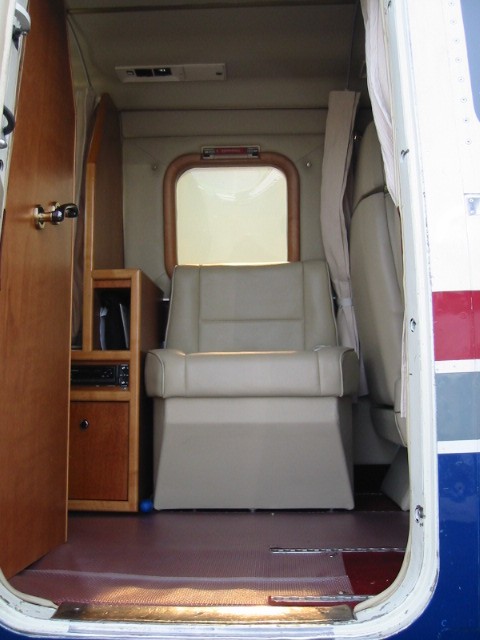

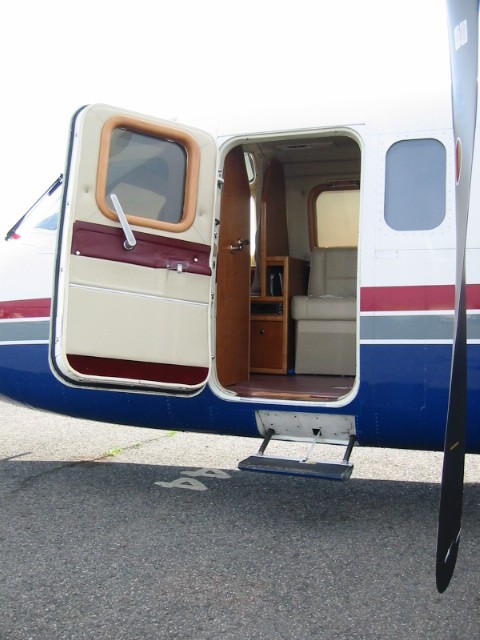

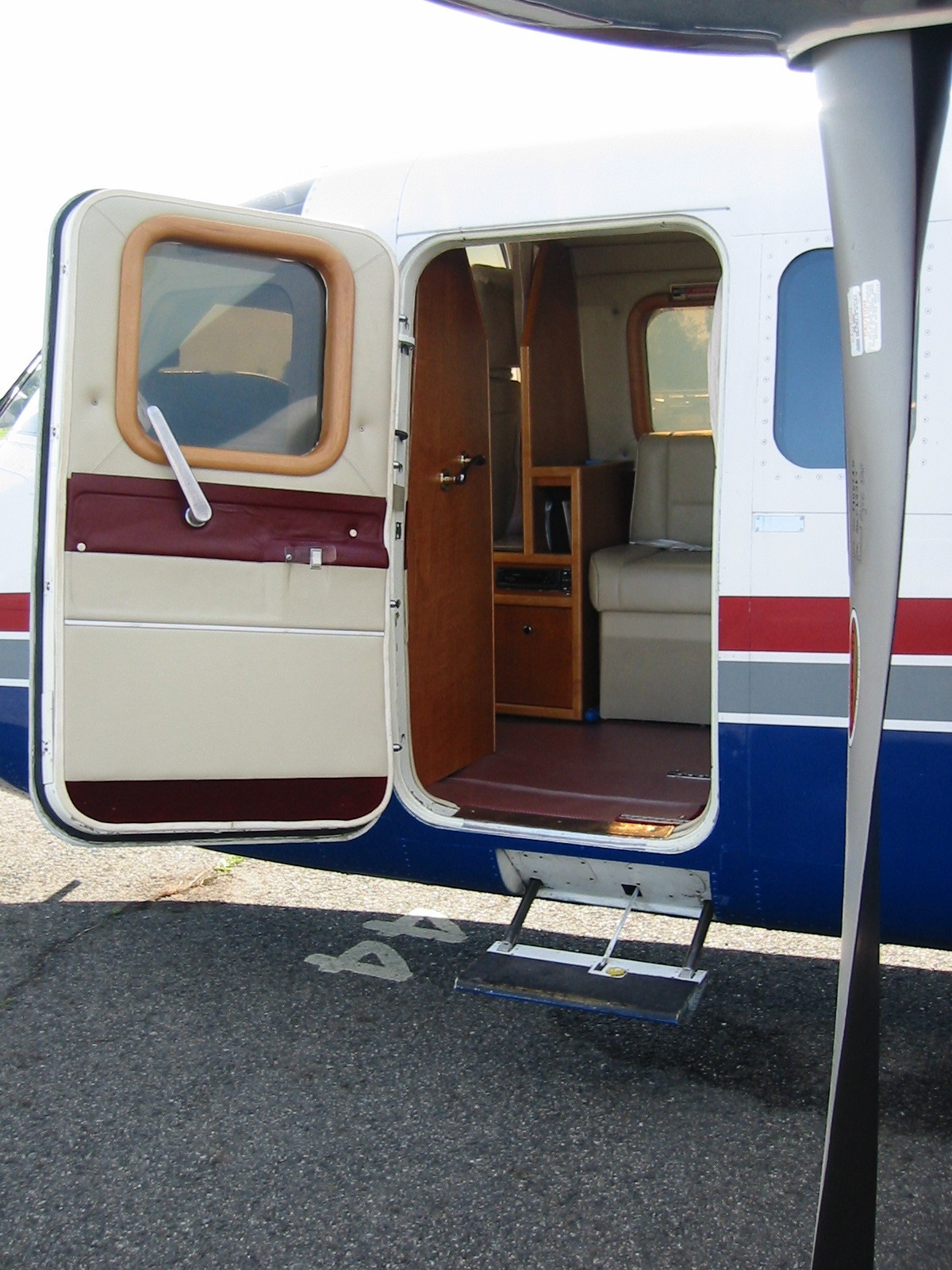

 |  Entry | Interior 1 | Interior 2 | Interior 3 | Interior 4 | Interior 5 |

1600 x 1200
| Exterior 1 | Exterior 2 | Instrument Panel 1Instrument Panel 2
 |  Entry | Interior 1 | Interior 2 | Interior 3 | Interior 4 | Interior 5 |

Aircraft:           1975 TURBO COMMANDER 690A S/N 11229

Total Time:      5655hr
                          Main Spar inspection complied with Oct-2001
                          12 Years inspection complied with Oct-2001
                          All SB and AD up to date.

Engines:           Garret 331-5-251k

Total Time:
#1:                    3332hrs on 3600h TBO or to 5400hr after HSI and GBI @3600hr
                          1506hrs since last HSI
#2:                    5048hrs on 5400hr TBO
                          582hrs since last HSI

Propellers:       Hartzell HC-B3TN-5FL
Total Time:      40hrs on both props O/H Oct-2001 All SB and AD complied with.
                          AD 96-18-14 Hub replacement complied.

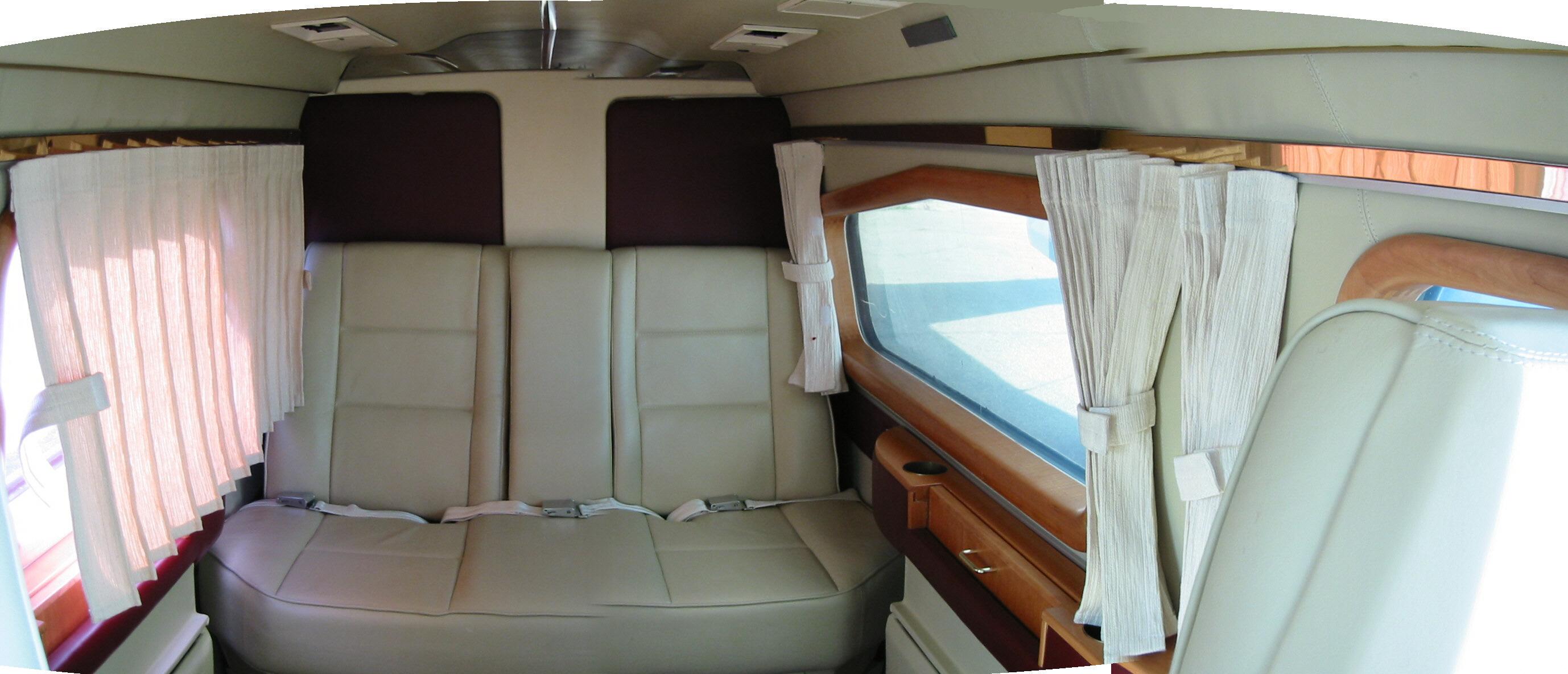

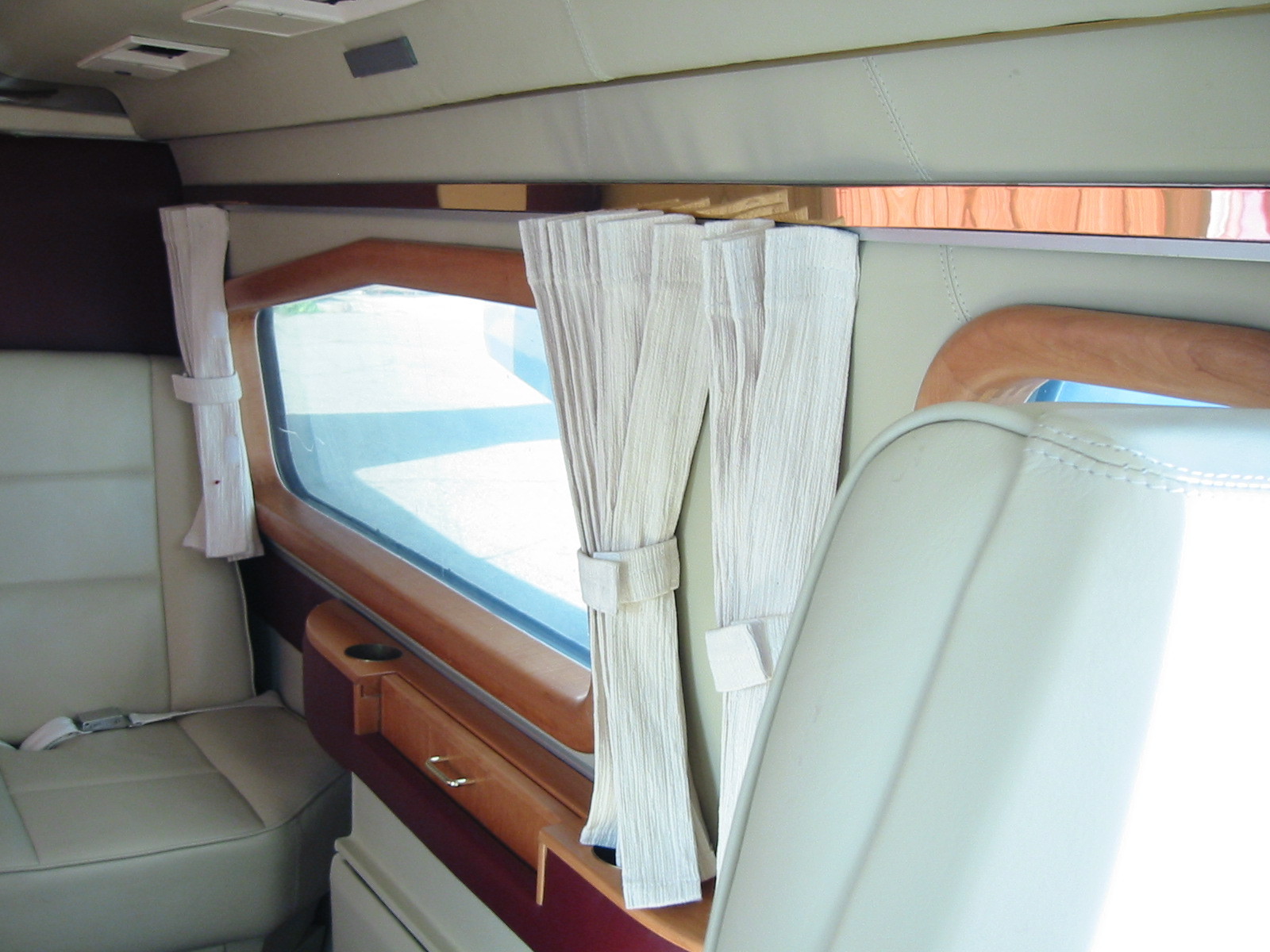

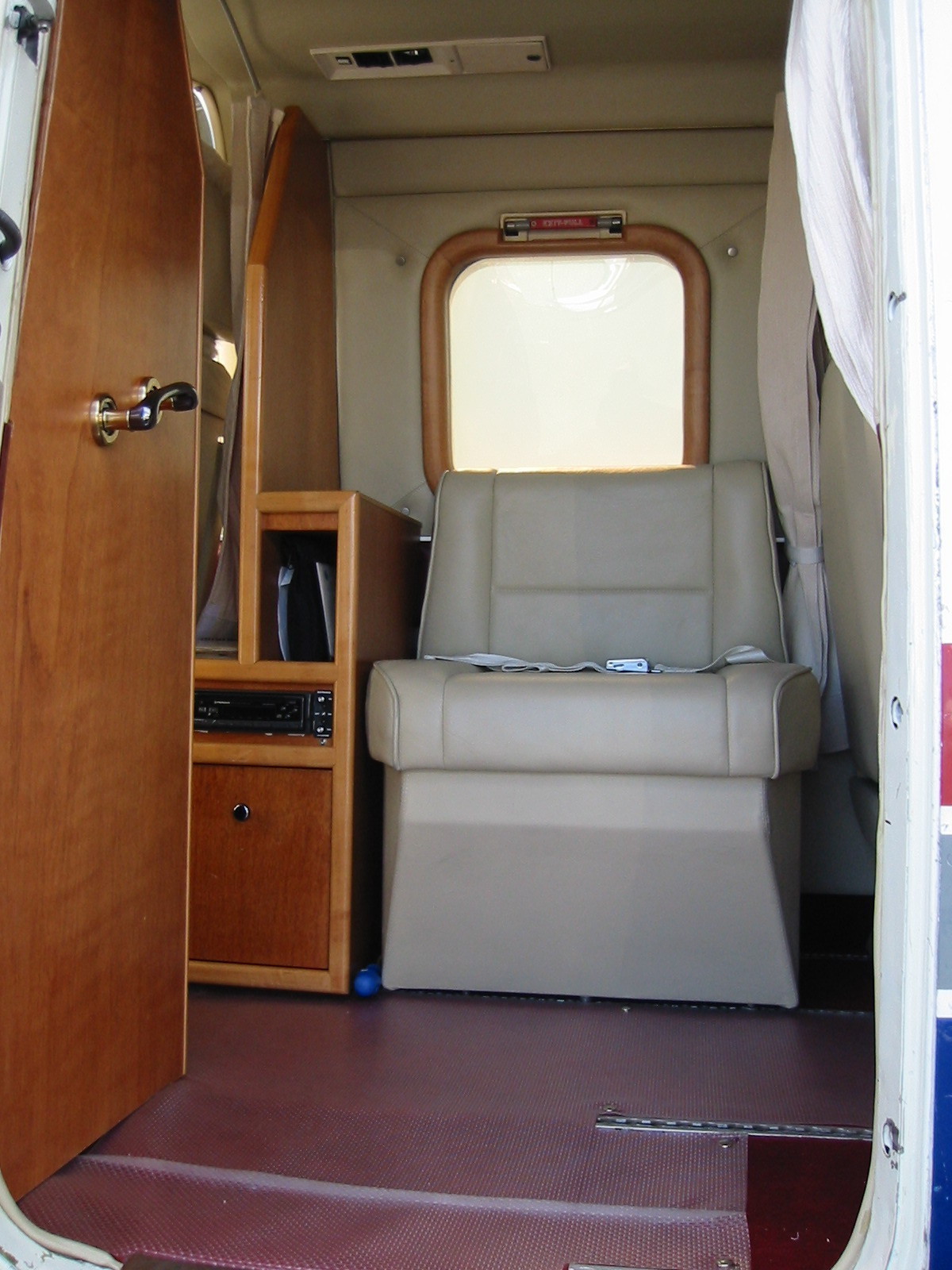

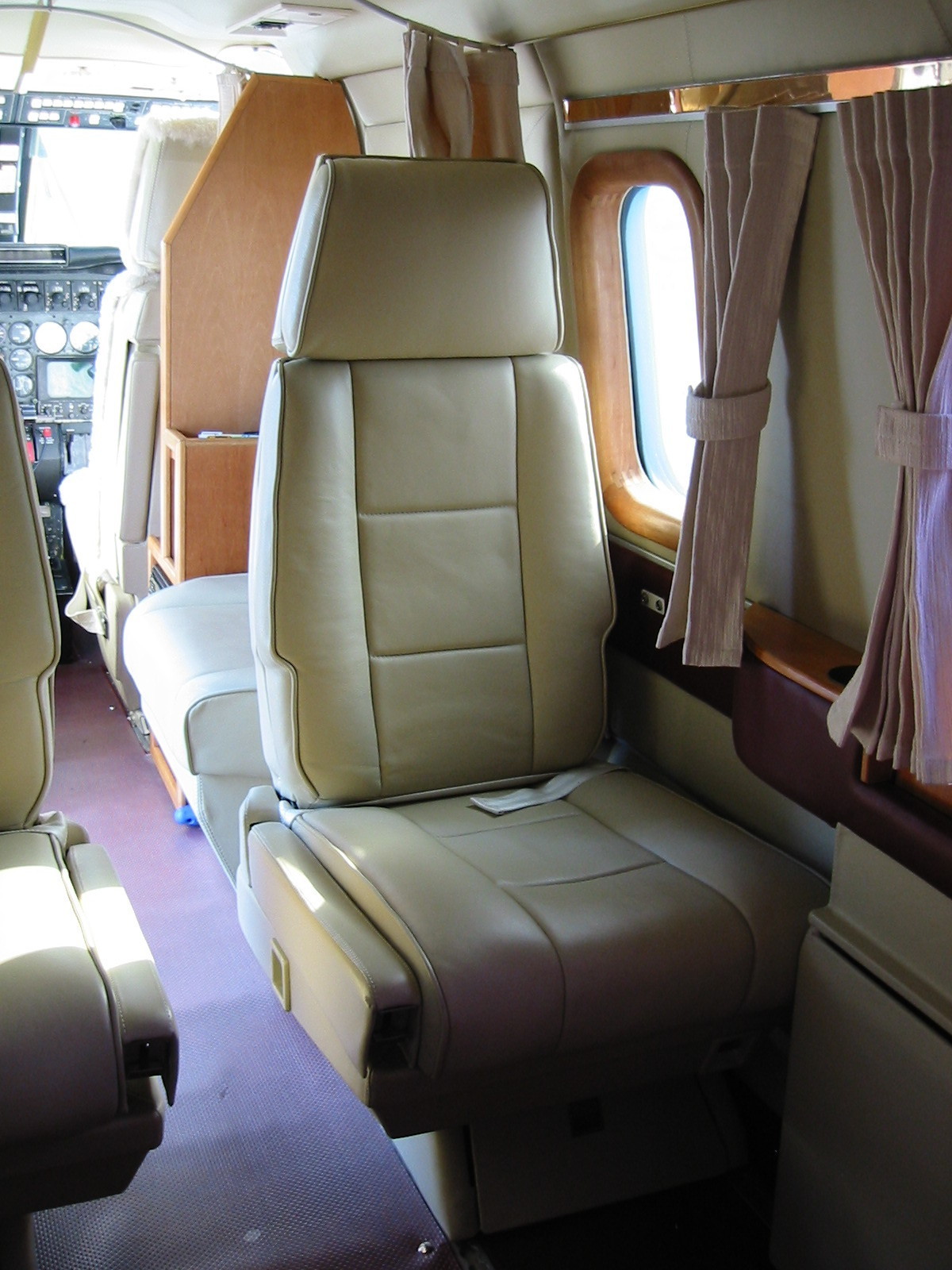

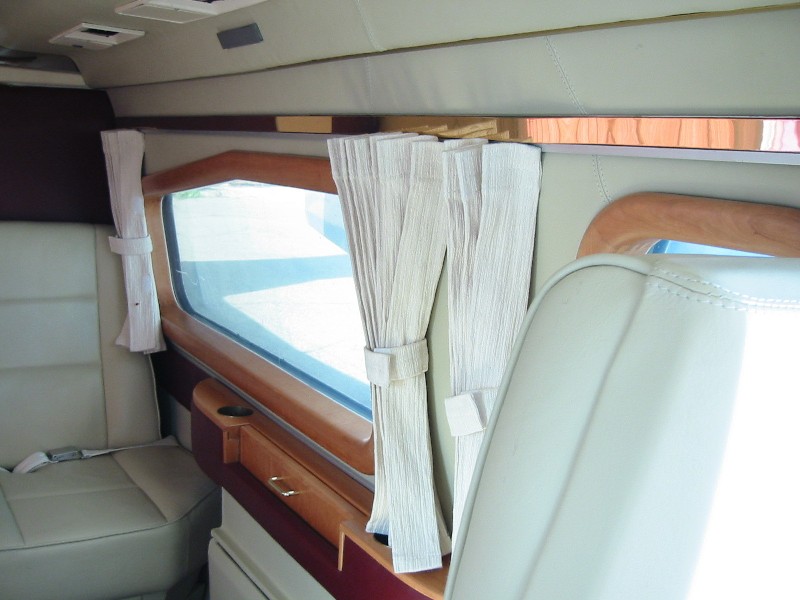

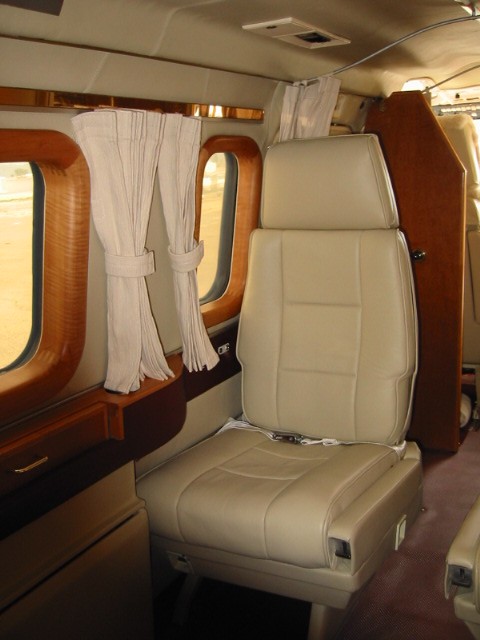

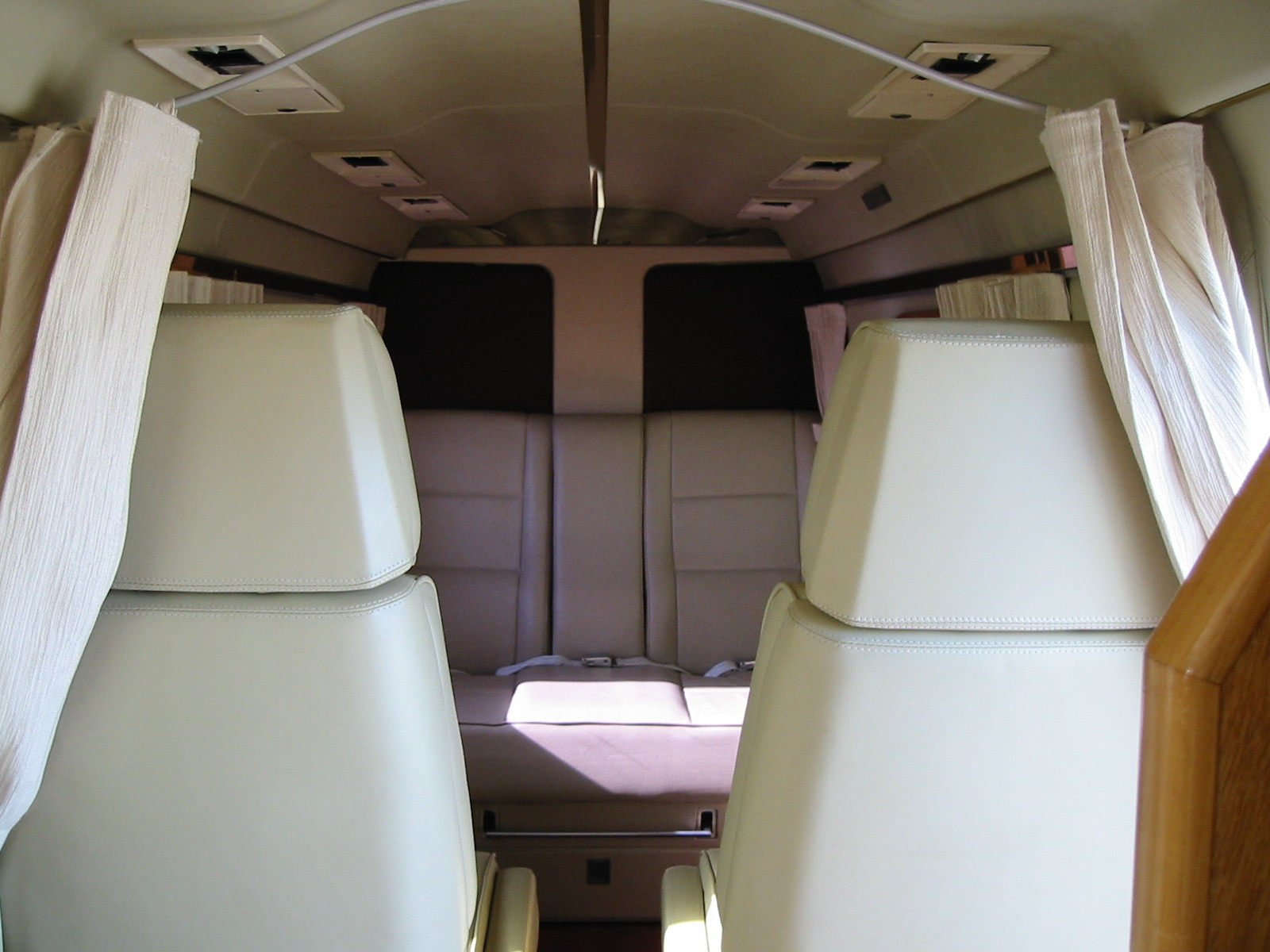

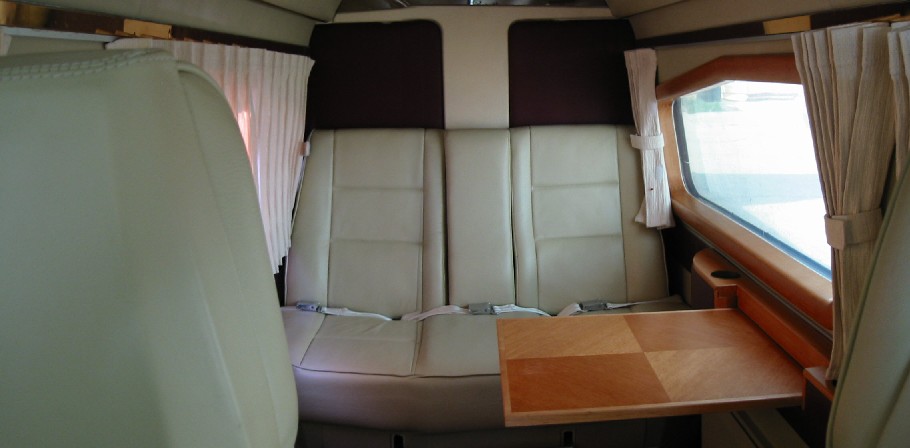

Interior:            New leather interior with Pilot and Co-Pilot sheepskin seats.
                          Mahogany wood .
                          Done Oct-2001.

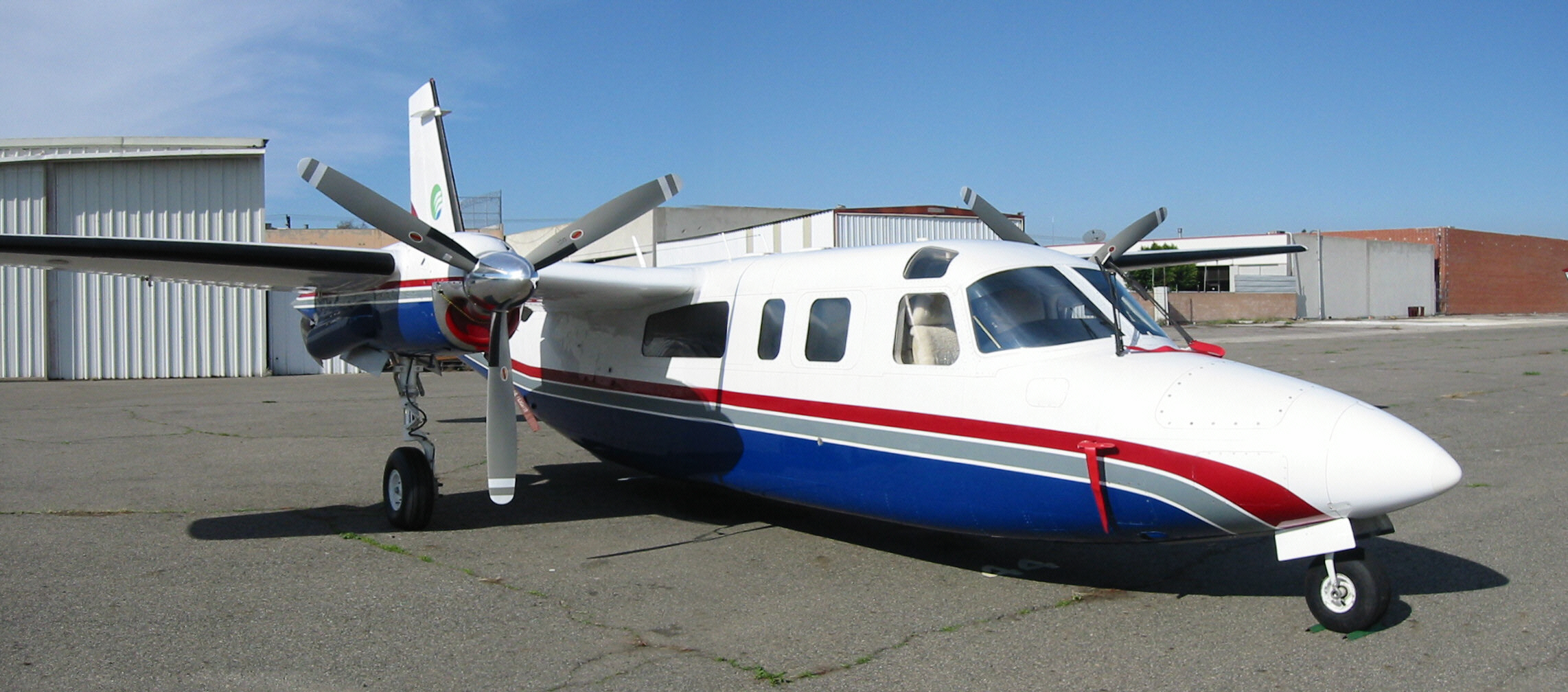

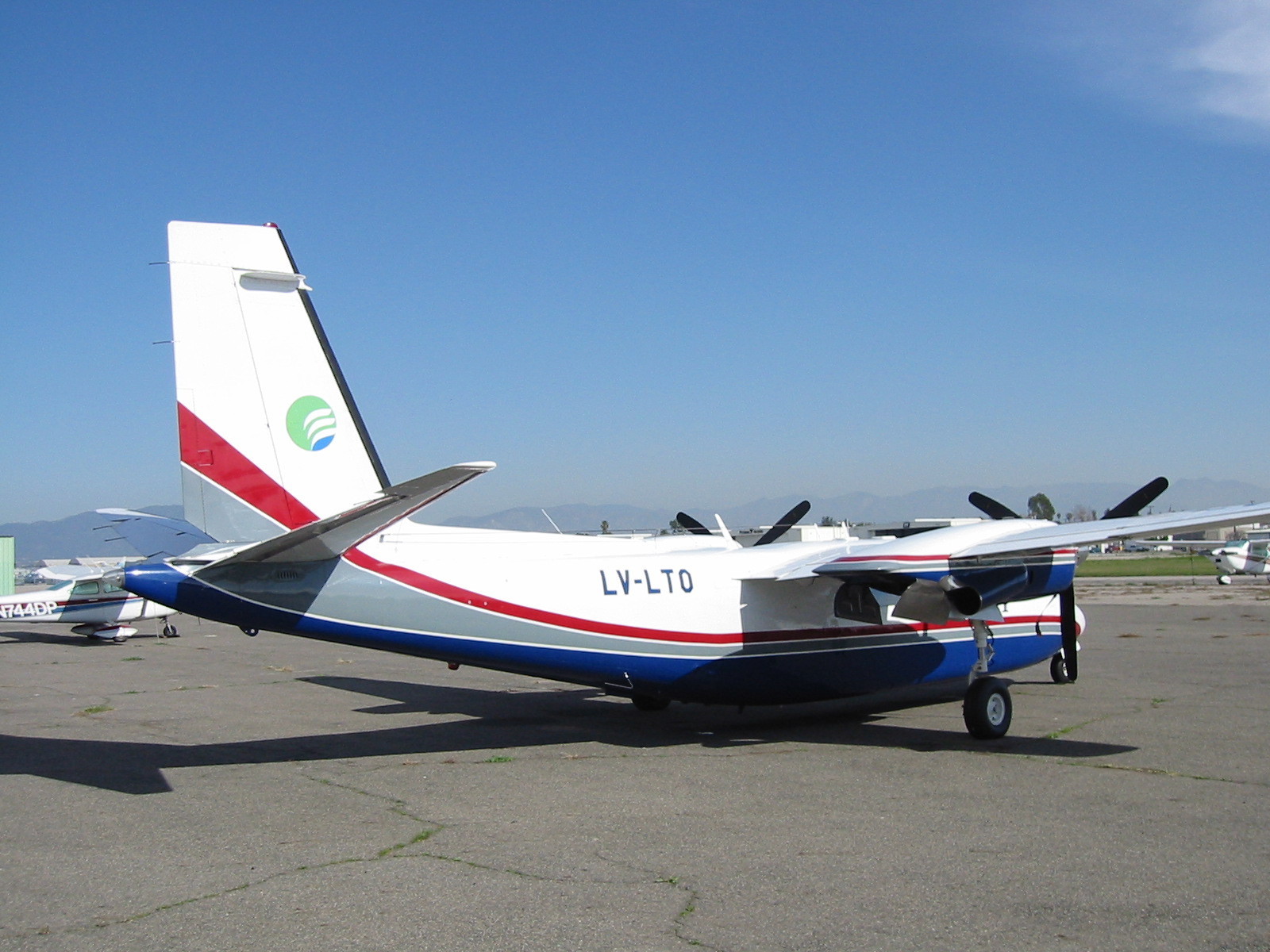

Exterior:           White with Red and Blue stripes. Excellent condition.

Avionics:
2ea           VHF Comm.                        King KTR-900A
2ea           ADF                                    King KDF-800
2ea           NAV                                   King KNR-660A
1ea           DME                                   King KDM 705A
1ea           G/S Marker                         King KGM-691
1ea           Transponder                        King KXP-750A
1ea           Radio Altimeter                    Collins ALT-50/860F-2
1ea           Radar                                  Bendix RT-1201A
1ea           ADI                                     Bendix DH-861A
1ea           HIS                                     Bendix IN-863A
1ea           RMI                                    Allen Aircraft Radio
1ea           ELT SAPSAT 406MHz       Artex Aircraft
1ea           GPS (coupled to AP)           Garmin 155XL IFR approach GPS

Options Installed:

Aircraft is located in the USA.
For additional information, please contact Dan at 818-786-8855 or email at ghfc@pacbell.net .
